AEE 3162 - Compressible Flow · Grade: 100
Minimum-Length 2D Rocket Nozzle

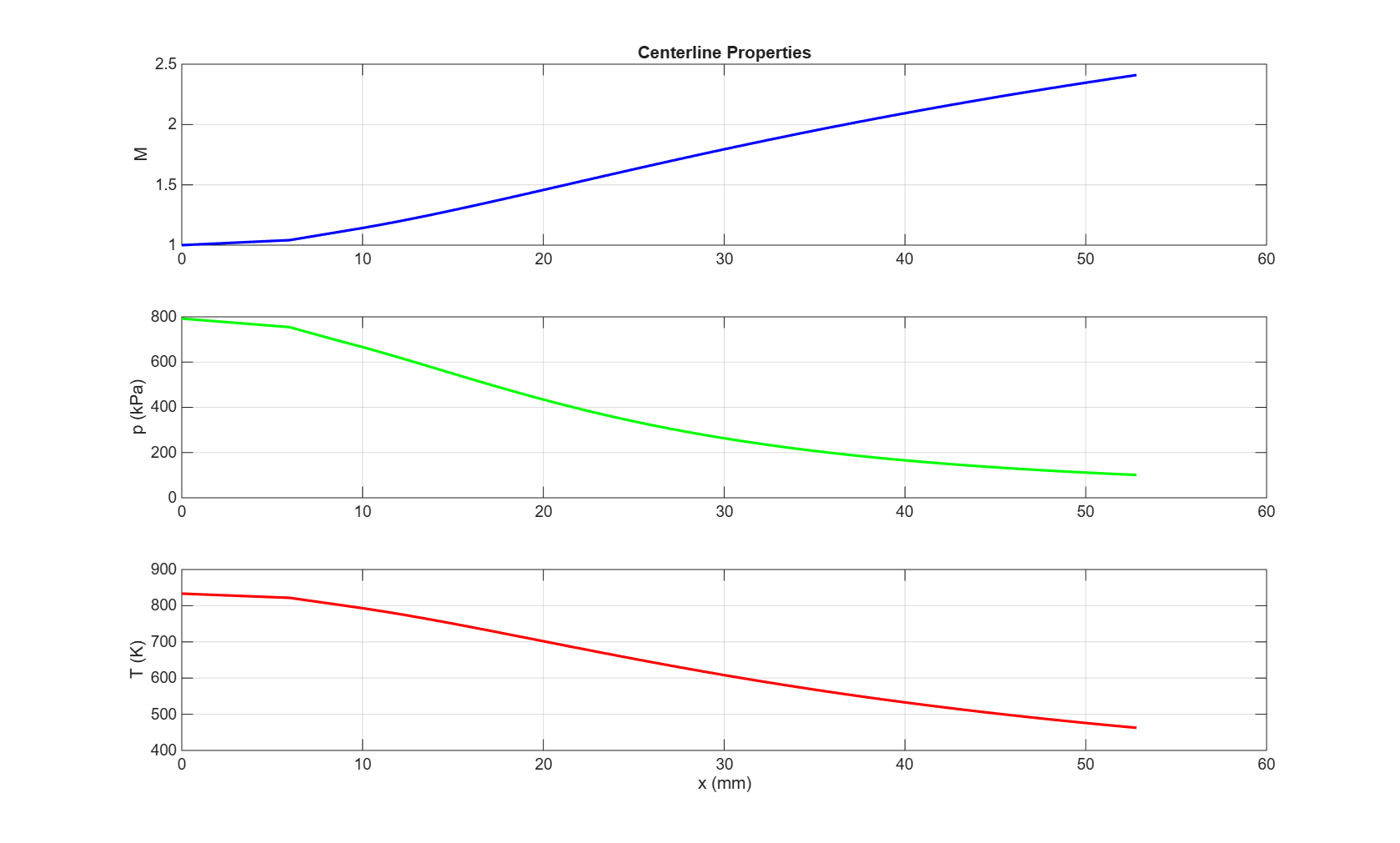

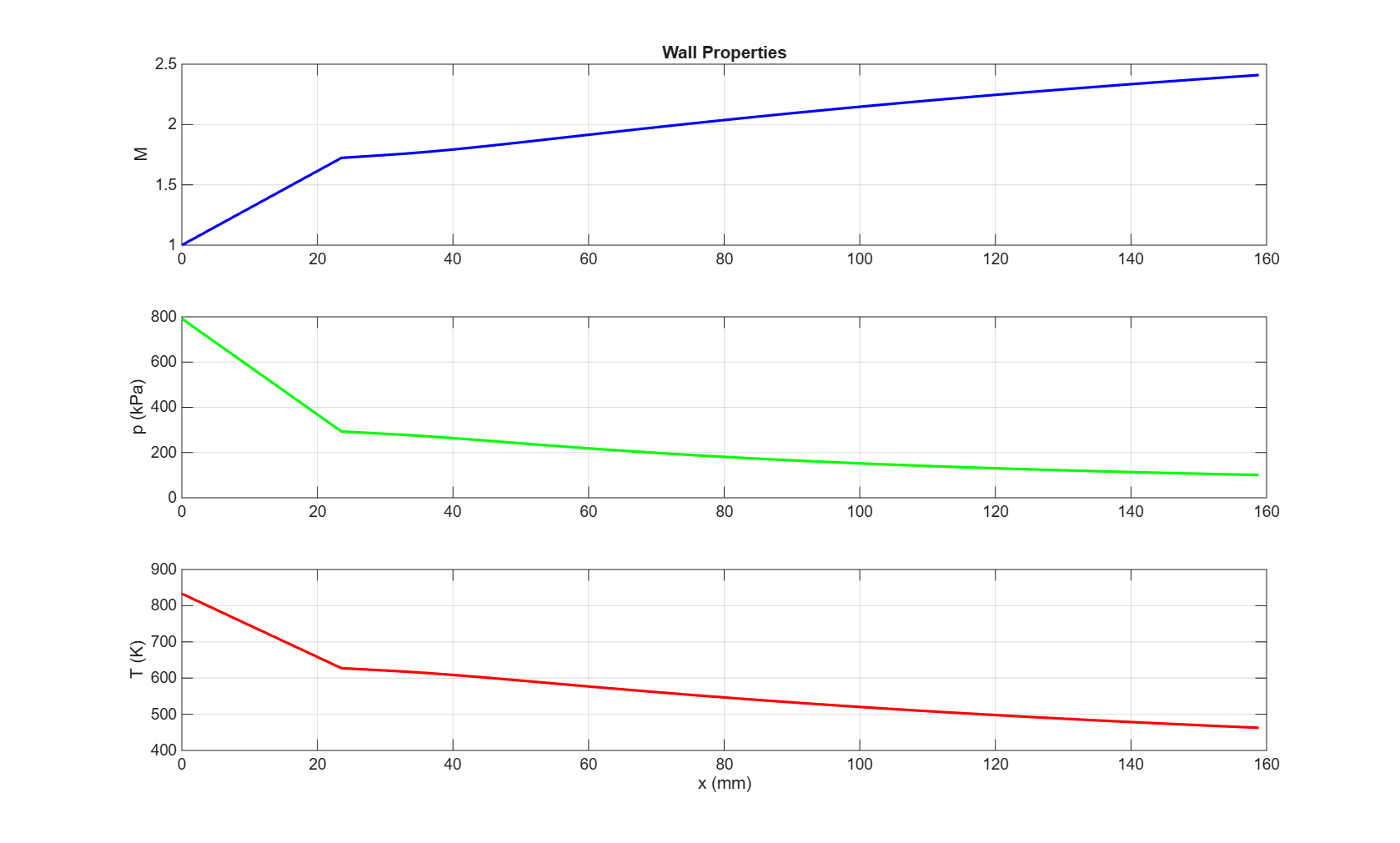

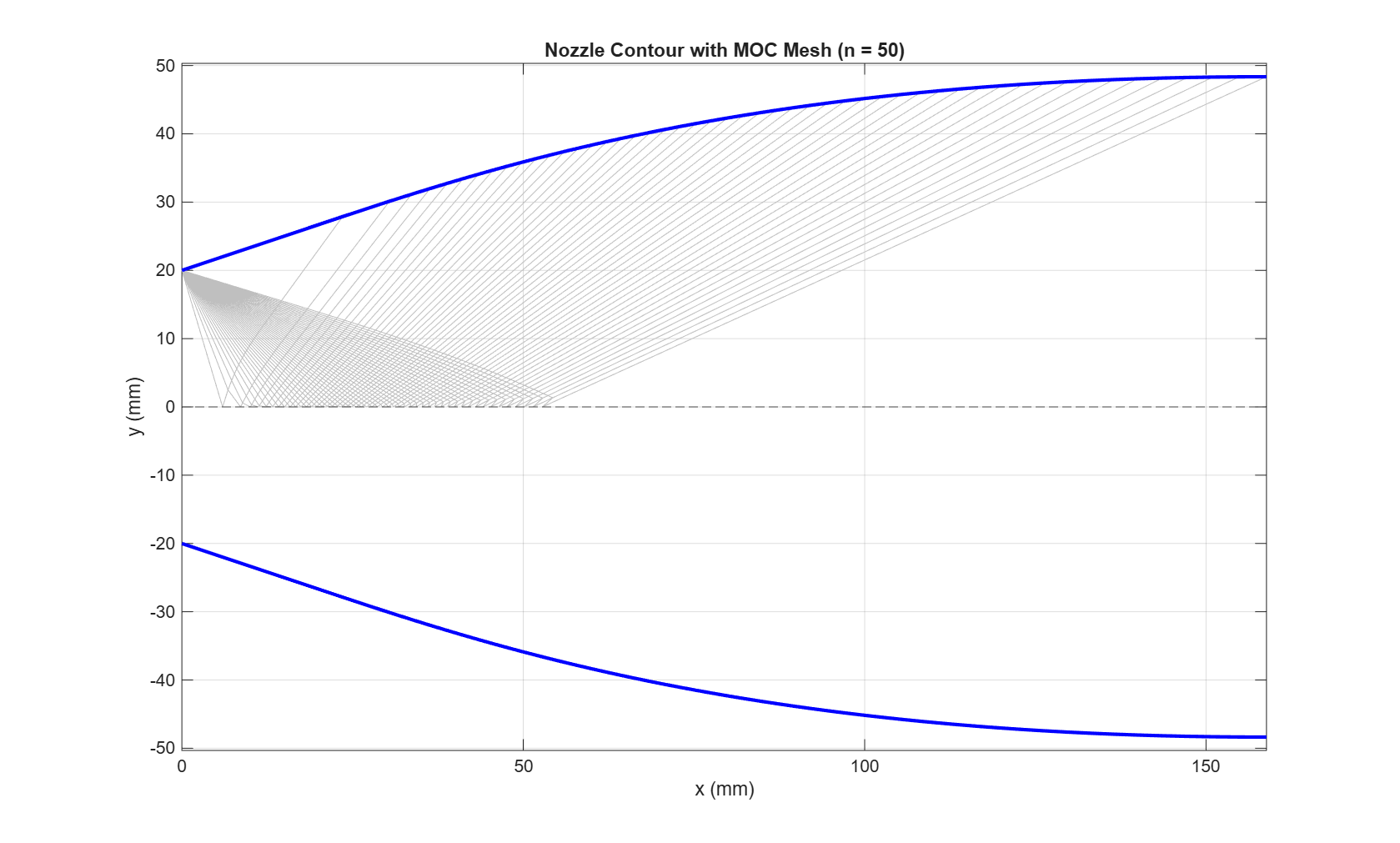

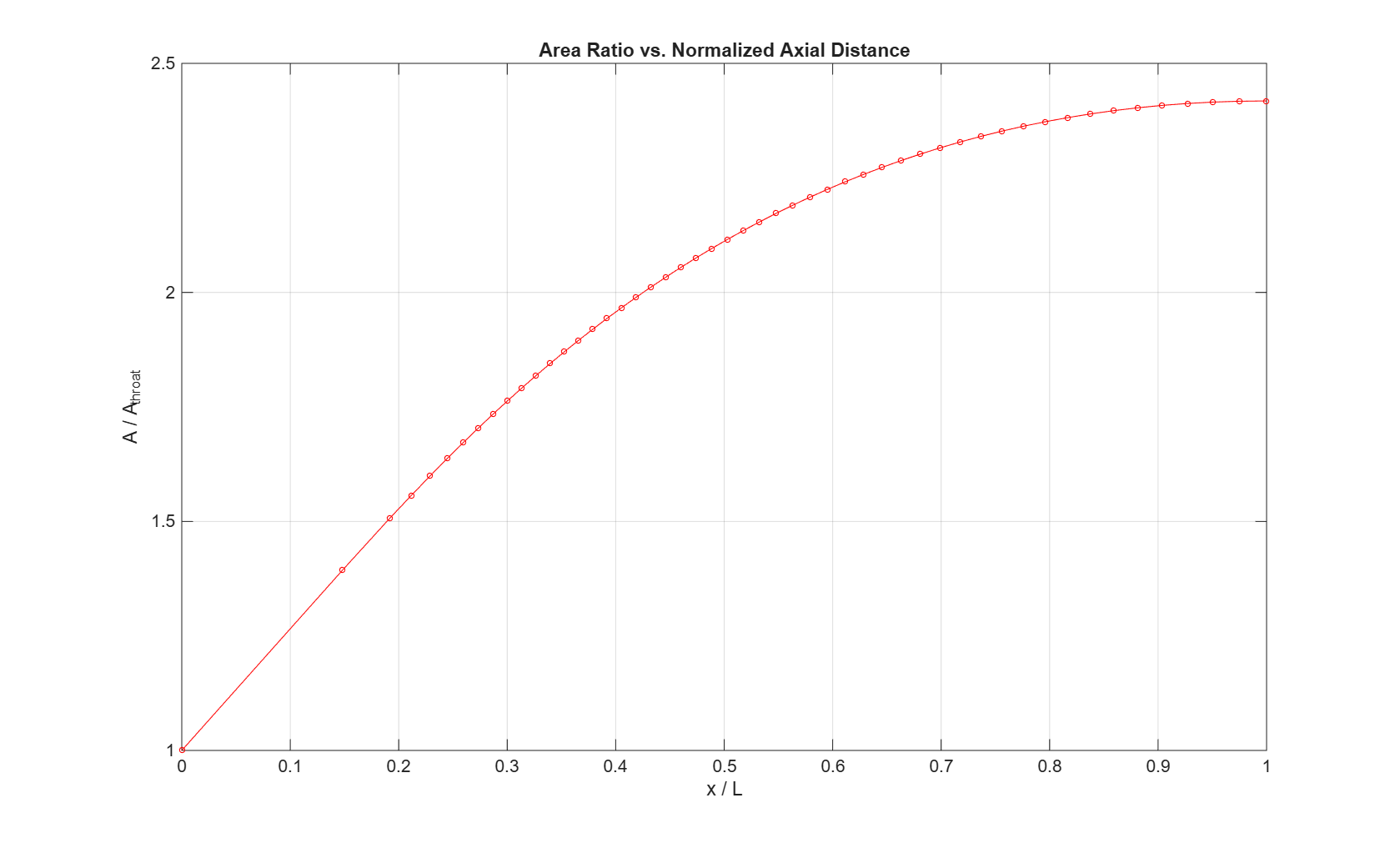

Minimum length, shock free 2D nozzle design for the expansion of air from stagnation state of 1500 kPa/1000 K to 101 kPa ambient pressure with Method of Characteristics featuring a 50 wave expansion fan. The characteristic mesh was solved completely (1325 grid points) using a customized code in MATLAB. Newton-Raphson based inversion of Prandtl-Meyer function was used to solve the characteristic equations. The exit Mach number was calculated as 2.41 while 53.74% of stagnation enthalpy was converted to kinetic energy, which is theoretically the maximum possible at that pressure ratio. The computed area ratio was within 0.305% from 1D isentropic calculation due to discretization of mesh.
Skills Learned
AEE 4014 - Controls · Grade: 87
Ball & Beam Control System
A second-order transfer function of a ball and beam control system was estimated from frequency domain data using the command tfest in MATLAB. The function was then tested against a SimScape plant model. Two controller designs were carried out, with the Lead-Lag compensator (gain=40, lead zero and pole at 1.5/25 and lag zero and pole at 0.1/0.01) performing with an RMSE of 0.0817 when tested against the SimScape model. The other design was a PID controller tuned to give a 60° phase margin (Kp=48.71, Ki=4.23, Kd=140.31), which gave an RMSE of 0.0394 and 6.06 s settling time against a desired 6 s.
